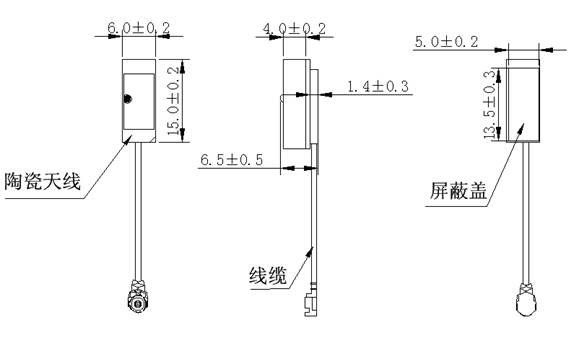

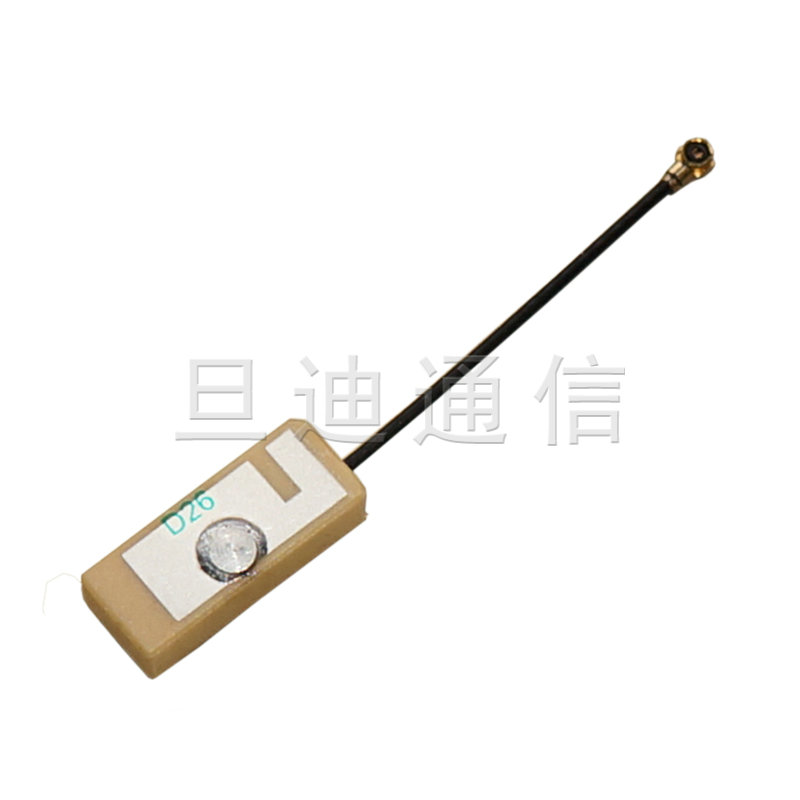

Product Description ： 1、GPS Internal Antenna，dimension：15mm6mm6.5mm/15mm6mm4.5mm； 2、Low voltage ,low power consumption, high sensitivity, fast positioning supported； 3、Mounting Method：Adhesive； 4、Wireless center freque
| Antenna |
Center Frequency |
1575.42±1.023MHz | |
Bandwidth |
10MHz min | ||
Dimension |
15X6X4 | 15X6X2 | |
Peak Gain |
-2.5dBi | -3.0dBi | |
| Axial Ratio | 3.0dB max | ||
| V.S.W.R | 1.5dB max | ||
| Impedance | 50Ω | ||
| Polarization | RHCP | ||
| LNA |
Center Frequency |
1575.42±1.023MHz | |
Gain |
18±2dB | ||
Noise Figure |
1.5dB max | ||
| Ex-band Attenuation | 40dB@CF+60MHz/40dB@CF-60MHz | ||
| Voltage | DC 3.0±0.3V | ||
| Current | 10±2 mA | ||
| V.S.W.R | 2.0dB max | ||
| Mechanical | Cable | RF1.13/RF0.81 | |
| Connector | IPX1/2/3/4 or others | ||
| Radome Material | ceramics | ||
| Mounting Method | Adhesive | ||
| Environmental | Operating Temperature | -40℃ to +85℃ | |
| Relative Humidity | Up to 95℃ | ||
| Environmentally Friendly | ROHS Compliant | ||
