Product Introduction

Model：

GPE-DD201

Product Introduction：

Product Description ： 1、GPS External Antenna，dimension：33mmX36mmX13.5mm； 2、High gain, high sensitivity, fast positioning supported； 3、Mounting Method：Magnet/Adhesive； 4、Cable length：RG174(0-8m)； 5、Both factory-in

SLU0226DS
SLU0226DS
Product description
Product Description：

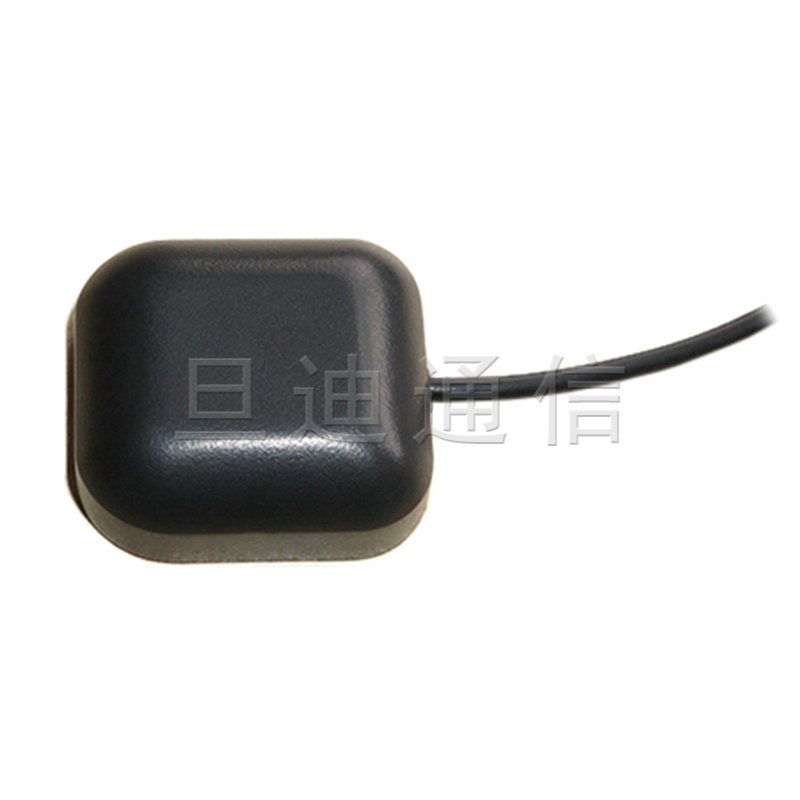

1、GPS External Antenna，dimension：33mmX36mmX13.5mm；
2、High gain, high sensitivity, fast positioning supported；
3、Mounting Method：Magnet/Adhesive；
4、Cable length：RG174(0-8m)；
5、Both factory-installed and aftermarket-installed GPS navigation and positioning equipment are supported.

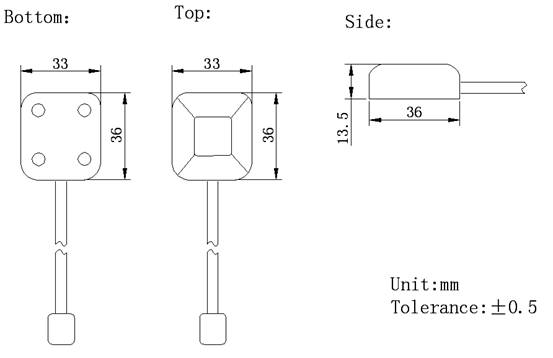

Product Dimension：



Product Introduction：
Antenna
Center Frequency
 1575.42±1.023MHz
Bandwidth
 10MHz min
Peak Gain
 5dBic
Axial Ratio 3.0dB max
V.S.W.R 1.5dB max
Impedance 50Ω
Polarization RHCP
LNA
Center Frequency
 1575.42±1.023MHz
Gain
 30±2dB
Noise Figure
 1.5dB max
Ex-band Attenuation 40dB@CF+60MHz/40dB@CF-60MHz
Voltage DC 3.0~5.0V
Current 11±2 mA
V.S.W.R 2.0dB max
Mechanical Cable RG174
Connector GT5/SMA/FAKRA or others
Radome Material ABS
Ingress Protection IP67
Mounting Method Magnet/Adhesive
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
