Product Description ： 1、Fold World Space Antenna，support GSM/GPRS/3G band； 2、Mounting Method：Magnet/Wall hangings； 3、This specification covers circular polarized antenna unit for receiving satellite signal for Worldspace rad
| Antenna |
Center Frequency |
1472±20 MHz |
Bandwidth |
40MHz min | |
Peak Gain |
6dBic | |
| Polarization | RHCP/LHCP | |
| LNA |
Center Frequency |
1472±20 MHz |
Gain |
30±2dB | |
Noise Figure |
1.5dB max | |
|
Image Rejection (Measured at 1262MHz) |
40dB | |
| Supply Voltage RHCP | DC 3.0±0.2 V | |
| Supply Voltage LHCP | DC 2.3±0.2 V | |
| Current | 16±2 mA | |
| Impedance | 50Ω | |
| V.S.W.R | 2.0dB max | |

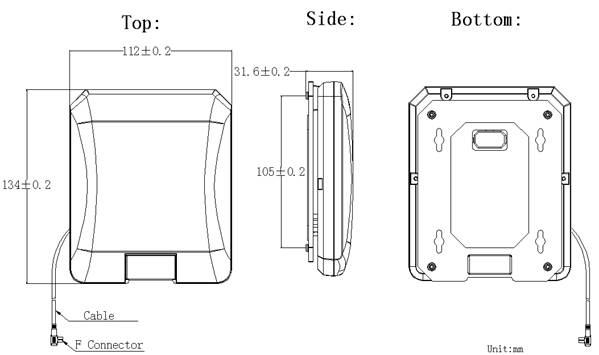

| Mechanical | Cable | RG174 |
| Connector | GT5/SMA/FAKRA or others | |
| Radome Material | ABS | |
| Ingress Protection | IP67 | |
| Mounting Method | Magnet/Wall hangings | |
| Environmental | Operating Temperature | -20℃ to +80℃ |
| Relative Humidity | Up to 95℃ | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
